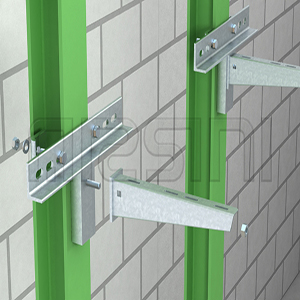

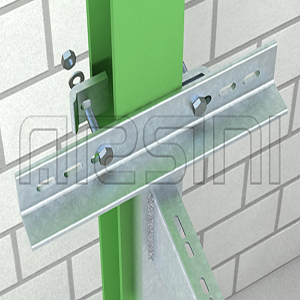

توضیحات
|
Type
|
Height mm
|
Width
mm |
Weight
Kg/100 pcs
|
Item No.
|
| BAP 14 HDG | 140 | 400 | 10862 | |
| BAP 27 HDG | 270 | 400 | 10864 |
Hot-dip galvanized HDG

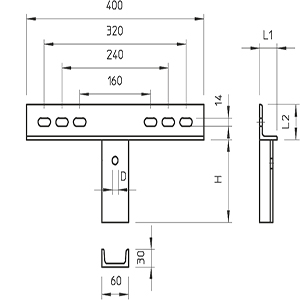

Dimensions
|
Type
|
Dimension
H
mm
|
Dimension
L1
mm
|
Dimension
L2
mm
|
Hole
D
mm
|
| BAP 14 |
140 | 60 | 40 | 13 |
| BAP 27 |
270 | 65 | 50 | 13 |
مقادیر تحمل بار آداپتور براکت 14 BAP با پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket adapter BAP 14 – Wall fastening
| Max. total load F in kN |
 |
||
| WUB F 21/41 | WUB E 11/61 | BAP 14 with bracke | |
| Anchor bolt type | |||
| 5.5 | 3 | WAB 12/110 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. Observe the load capacity of the brackets (diagram) and the installation conditions of the DIBt approval (anchors).
مقادیر تحمل بار آداپتور براکت 27 BAP با پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket adapter BAP 27 – Wall fastening
| Max. total load F in kN |
|
||
| WB B 21/81 | WUB F 51/101 | BAP 27 with bracke | |
| Anchor bolt type | |||
| 8 | 5.5 | WAB 12/110 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. Observe the load capacity of the brackets (diagram) and the installation conditions of the DIBt approval (anchors).
