توضیحات
|
Type
|
Height mm
|
Width
mm |
Weight
Kg/100 pcs
|
Item No.
|

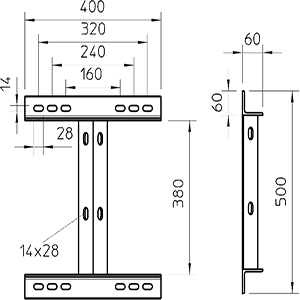

| BAP 45 HDG | 500 | 400 | 10866 |
Hot-dip galvanized HDG

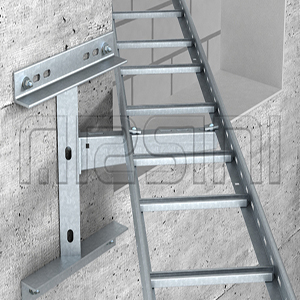

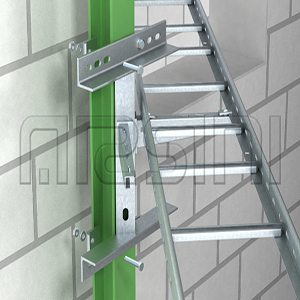

مقادیر تحمل بار آداپتور براکت 45 BAP با پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket adapter BAP 45 – Wall fastening
| Max. total load F in kN |
 |
|||
| WB B | WUB F |
WUB E |
BAP 45 with bracke | |
| Anchor bolt type | ||||
| 8 | 5.5 | 3 | WAB 12/110 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. Observe the load capacity of the brackets (diagram) and the installation conditions of the DIBt approval (anchors). Mounting information: When using this component, please order a bracket which is 500 mm longer than the width of the tray/ladder.
