توضیحات
|
Type
|
Material
Thickness
mm
|
F in KN
KN |
Weight
Kg/100 pcs
|
Item No.
|
| WB B 21 HDG | 3 & 10 | 8 | 10848 | |
| WB B 31 HDG | 3 & 10 | 8 | 10850 | |
| WB B 41 HDG | 3 & 10 | 8 | 10852 | |
| WB B 51 HDG | 3.5 & 10 | 8 | 10854 | |
| WB B 61 HDG | 3.5 & 10 | 8 | 10856 | |
| WB B 71 HDG | 3.5 & 12 | 8 | 10858 | |
| WB B 81 HDG | 3.5 & 12 | 8 | 10860 |
Hot-dip galvanized HDG

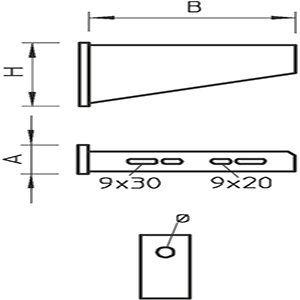

Dimensions
|
Type
|
Dimension
B
mm
|
Dimension
A
mm
|
Dimension
H
mm
|
Hole
Ø
mm
|
| WB B 21 | 210 | 50 | 110 | 17.5 |
| WB B 31 |
310 | 50 | 145 | 17.5 |
| WB B 41 |
410 | 50 | 165 | 17.5 |
| WB B 51 |
510 | 60 | 195 | 17.5 |
| WB B 61 |
610 | 60 | 210 | 17.5 |
| WB B 71 | 710 | 60 | 235 | 17.5 |
| WB B 81 | 810 | 60 | 260 | 17.5 |
بارگذاری (Loading)
نمودار بارگذاری براکت ، مدل WB B
Load diagram, bracket, type WB B
1 Bending of the bracket tip at permitted bracket load
2 Permitted bracket load in kN without man load
Load curve with bracket lengths in mm

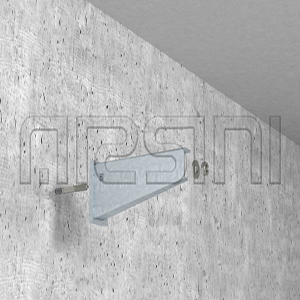

مقادیر تحمل بار براکت WB Bبا پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket WB B – Wall fastening
| Max. load F (KN) |
 |
|||||||
| 810 | 710 | 610 | 510 | 410 | 310 | 210 | Bracket width (mm) |
|
| Anchor bolt type | ||||||||
| 3.5 | 3.8 | 4.25 | 4.5 | 4.5 | 4.6 | 4.75 | WAB 12/110 | |
| 5.4 | 5.5 | 6.6 | 7 | 7 | 7.4 | 7.6 | HLA 12/140 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. The values given are based on concrete of strength class C20/25. Observe the installation conditions of the DIBt approval (anchors)
