توضیحات

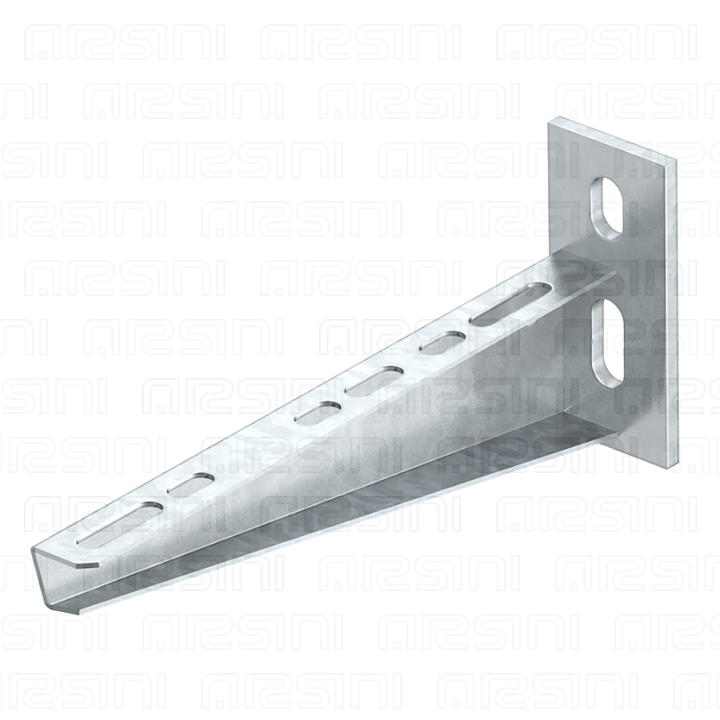

براکت دیواری و براکت U ساپورت و براکت C ریل ، جهت کار سبک به همراه هد پلیت (سر صفحه) جوشی و دو سوراخ جهت نصب.
هنگام نصب براکت تا طول 400 میلیمتر به نگهدارنده (ساپورت) U شکل ، از پیچ اتاقی (گردن مربع) یا پیچ شش ضلعی استفاده شود.
برای نصب براکت 500 میلیمتر یا بیشتر به نگهدارنده (ساپورت) U شکل ، براکت باید توسط قطعه پرکننده فاصله به همراه پیچ شش ضلعی به دو بال یا همان دو محور U ساپورت مهار شود.
Light-duty wall and support bracket with welded head plate and two fastening holes.
When mounting the bracket on U supports up to a width of 400 mm, a truss-head screw or a hexagonal bolt is used, depending on the profile, to fasten the support bracket.
For bracket widths of 500 mm or more, the bracket is fastened through both struts of the U support using hexagonal bolts. Appropriate spacers are to be used, depending on the profile.
When mounting the bracket on U supports up to a width of 400 mm, a truss-head screw or a hexagonal bolt is used, depending on the profile, to fasten the support bracket.
For bracket widths of 500 mm or more, the bracket is fastened through both struts of the U support using hexagonal bolts. Appropriate spacers are to be used, depending on the profile.
|
Type
|
Material
Thickness
mm
|
F in KN
KN |
Weight
Kg/100 pcs
|
Item No.
|
| WUB C 11 PG | 1.5 & 5 | 1.5 | 10686 | |
| WUB C 16 PG | 1.5 & 5 | 1.5 | 10688 | |
| WUB C 21 PG | 1.5 & 5 | 1.5 | 10690 | |
| WUB C 31 PG | 2 & 5 | 1.5 | 10692 | |
| WUB C 41 PG | 2 & 5 | 1.5 | 10694 | |
| WUB C 51 PG | 2 & 5 | 1.5 | 10696 | |
| WUB C 61 PG | 2 & 5 | 1.5 | 10698 | |
| WUB C 11 HDG | 1.5 & 5 | 1.5 | 10700 | |
| WUB C 16 HDG | 1.5 & 5 | 1.5 | 10702 | |
| WUB C 21 HDG | 1.5 & 5 | 1.5 | 10704 | |
| WUB C 31 HDG | 2 & 5 | 1.5 | 10706 | |
| WUB C 41 HDG | 2 & 5 | 1.5 | 10708 | |
| WUB C 51 HDG | 2 & 5 | 1.5 | 10710 | |
| WUB C 61 HDG | 2 & 5 | 1.5 | 10712 | |
| WUB C 11 SS | 1.5 & 5 | 1.5 | 10714 | |
| WUB C 21 SS | 1.5 & 5 | 1.5 | 10716 | |
| WUB C 31 SS | 2 & 5 | 1.5 | 10718 | |
| WUB C 41 SS | 2 & 5 | 1.5 | 10720 | |
| WUB C 51 SS | 2 & 5 | 1.5 | 10722 | |
| WUB C 61 SS | 2 & 5 | 1.5 | 10724 |
Hot-dip galvanized HDG
PG Pre-galvanized
SS Stainless steel

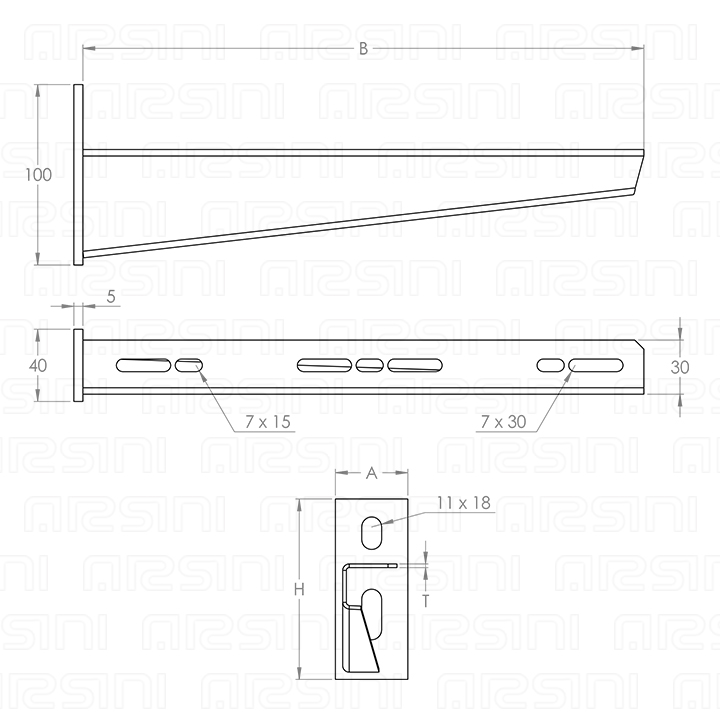

Dimensions
|
Type
|
Dimension
B
mm
|
Dimension
A
mm
|
Dimension
H
mm
|
Hole
∅
mm
|
| WUB C 11 |
110 | 40 | 100 | 11 |
| WUB C 16 |
160 | 40 | 100 | 11 |
| WUB C 21 |
210 | 40 | 100 | 11 |
| WUB C 31 |
310 | 40 | 100 | 11 |
| WUB C 41 |
410 | 40 | 100 | 11 |
| WUB C 51 | 510 | 40 | 100 | 11 |
| WUB C 61 | 610 | 40 | 100 | 11 |
بارگذاری (Loading)
نمودار بارگذاری براکت ، مدل WUB C
Load diagram, bracket, type WUB C
1 Bending of the bracket tip at permitted bracket load
2 Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
مقادیر تحمل بار براکت WUB C با پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket WUB C – Wall fastening
| Max. load F (KN) |
 |
|||||||
| 610 | 510 | 410 | 310 | 210 | 160 | 110 | Bracket width (mm) |
|
| Anchor bolt type | ||||||||
| 0.45 | 0.5 | 0.55 | 0.65 | 0.8 | 0.9 | 1.1 | WAB 8/75 | |
| 0.8 | 0.85 | 0.95 | 1.1 | 1.4 | 1.5 | 1.5 | WAB 10/90 | |
مقادیر تحمل بار براکت WUB C با پیچ مهار مخصوص – نصب بر روی U ساپورت آویز
Characteristic anchor bolt load values for bracket WUB C – suspended U support
| Max. load F (KN) |
 |
||||
| 410 | 310 | 210 | 110 | Bracket width (mm) |
|
| U Support type | |||||
| 1.3 | 1.3 | 1.5 | 1.5 | US 3 P / 20-60 | |
| 1.3 | 1.3 | 1.5 | 1.5 | US 3 P / 70-120 | |
| 1.5 | 1.5 | 1.5 | 1.5 | US 5 P / 20-60 | |
| 1.5 | 1.4 | 1.5 | 1.5 | US 5 P / 70-120 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. The values given are based on concrete of strength class C20/25. Observe the installation conditions of the DIBt approval (anchors).
