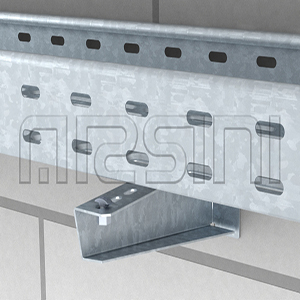

توضیحات
|
Type
|
Material
Thickness
mm
|
F in KN
KN |
Weight
Kg/100 pcs
|
Item No.
|
| WUB A 11 PG | 1.5 | 1.2 | 10636 | |
| WUB A 16 PG | 1.5 | 1.2 | 10638 | |
| WUB A 21 PG | 1.5 | 1.2 | 10640 | |
| WUB A 31 PG | 1.5 | 1.2 | 10642 | |
| WUB A 41 PG | 1.5 | 1.2 | 10644 |
PG Pre-galvanized

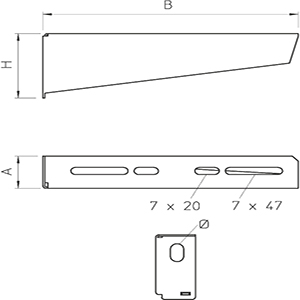

Dimensions
|
Type
|
Dimension
B
mm
|
Dimension
A
mm
|
Dimension
H
mm
|
Hole
∅
mm
|
| WUB A 11 PG | 110 | 32.5 | 53 | 11 |
| WUB A 16 PG | 160 | 32.5 | 53 | 11 |
| WUB A 21 PG | 210 | 32.5 | 65 | 11 |
| WUB A 31 PG | 310 | 38 | 75 | 11 |
| WUB A 41 PG | 410 | 38 | 83 | 11 |
بارگذاری (Loading)
نمودار بارگذاری براکت ، مدل WUB A
Load diagram, bracket, type WUB A
1 Bending of the bracket tip at permitted bracket load
2 Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
مقادیر تحمل بار براکت WUB A با پیچ مهار مخصوص – نصب بر روی دیوار
Characteristic anchor bolt load values for bracket WUB A – Wall fastening
| Max. load F (KN) |
 |
||||
| 410 | 310 | 210 | 110 | Bracket width (mm) |
|
| Anchor bolt type | |||||
| 0.65 | 0.7 | 0.95 | 1.2 | WAB 8/75 | |
| 1.2 | 1.2 | 1.2 | 1.2 | WAB 10/90 | |
مقادیر تحمل بار براکت WUB A با پیچ مهار مخصوص – نصب بر روی U ساپورت آویز

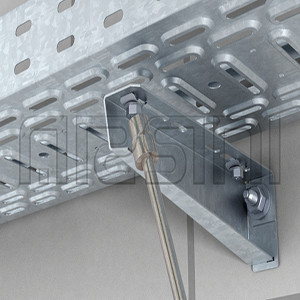

Characteristic anchor bolt load values for bracket WUB A – suspended U support
| Max. load F (KN) |
 |
||||
| 410 | 310 | 210 | 110 | Bracket width (mm) |
|
| U Support type | |||||
| 1.2 | 1.2 | 1.2 | 1.2 | US 3 P / 20-60 | |
| 1.2 | 1.2 | 1.2 | 1.2 | US 3 P / 70-120 | |
| 1.2 | 1.2 | 1.2 | 1.2 | US 5 P / 20-60 | |
| 1.2 | 1.2 | 1.2 | 1.2 | US 5 P / 70-120 | |
Max. total load F = cable weight + cable tray + bracket. The load capacity values increase considerably when used in uncracked concrete. The values given are based on concrete of strength class C20/25. Observe the installation conditions of the DIBt approval (anchors).
